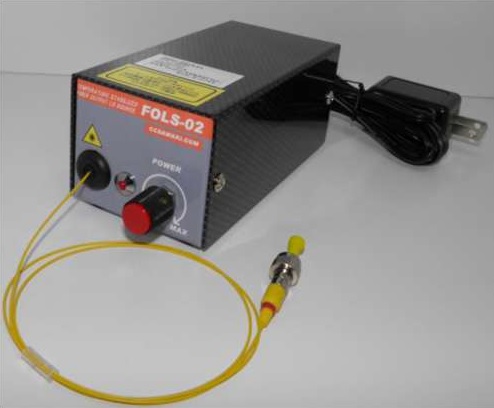

Temperature Stabilized SM Fiver Output LD Light Source

FOLS-02 is SM fiber output LD light source with SM output fiber, LD chip, TEC, driving circuit and power supply.
375nm 〜1550nm wavelength region can be selected for each application.
Output power is 1mW 〜10mW CW.
Pulse emission is achieved with external TTL trigger input.
LD module inside is temperature controlled for stable power and wavelength operation.

Flyer

Property

• Fiber output for easy use
• Ultra-violet, visible and infra-red
• 1mW〜10mW output
• Stable power and wavelength operation
• Pulse emission with external TTL trigger input

Application

• Exciting source for fluorescence experiment
• Evaluation of PD, PMT, fiber, optical components
• Alignment of Optical system
• Spectral analysis
• Optical sensing

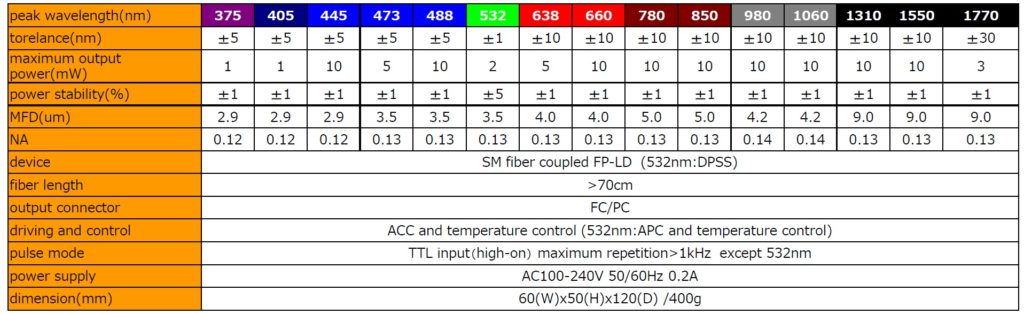

Specifications

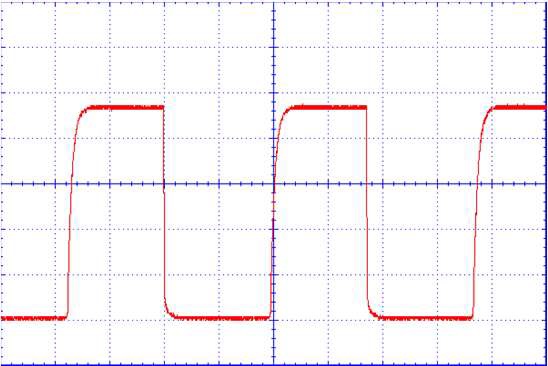

Pulse Emission(850nm, repetition 1kHz)

Power Stability(850nm 10mW, under room temperature)

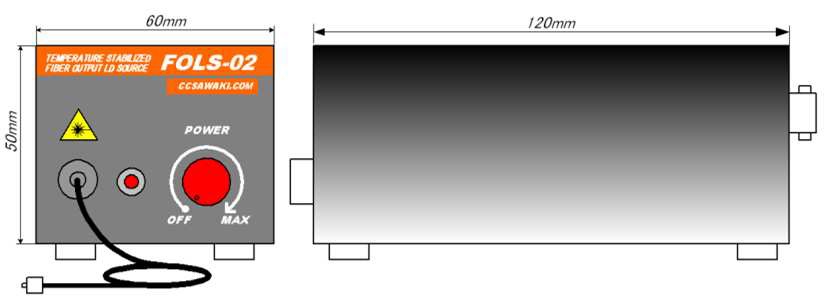

External Dimension
