Temperature Stabilized SM Fiber Output Superluminescent Light Source

FOLS-04 is SM fiber output superluminescent light source with SM output fiber, SLD chip, TEC, driving
circuit and power supply.
680nm 〜1540nm wavelength region can be selected for each application.
SLD emits wide band spectrum and high power lowcoherent beam.
Output power is 1mW CW.
Pulse emission is achieved with external TTL trigger input.
SLD module inside is temperature controlled for stable power and wavelength operation.

Flyer

Property

• Fiber output for easy use
• Visible and infra-red
• Wide band spectrum and high power low-coherent beam
• Stable power and wavelength operation
• Pulse emission with external TTL trigger input

Application

• Fringe-free and speckle-free optical measurement
• Spectral analysis
• Optical sensing

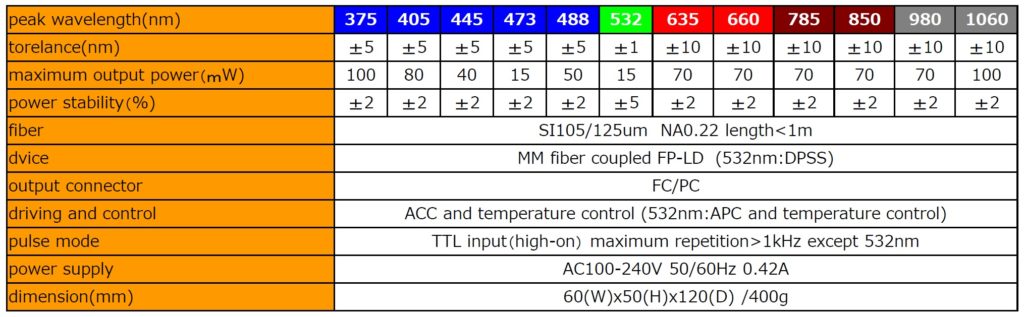

Specifications

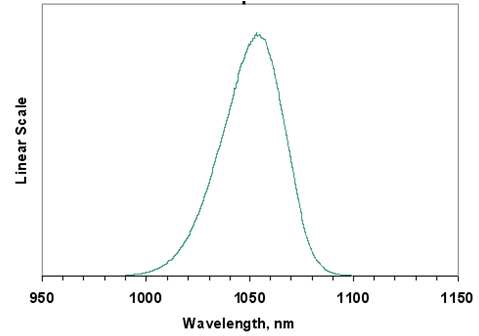

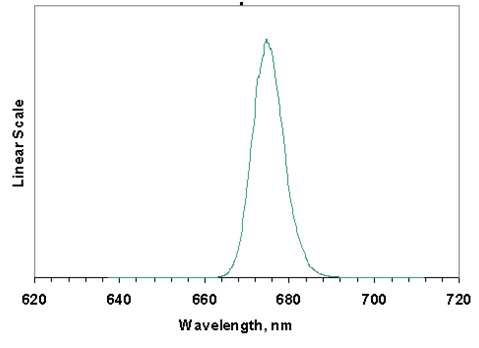

Spectrum Example

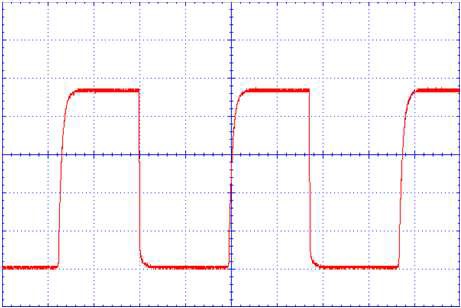

Pulse Emission

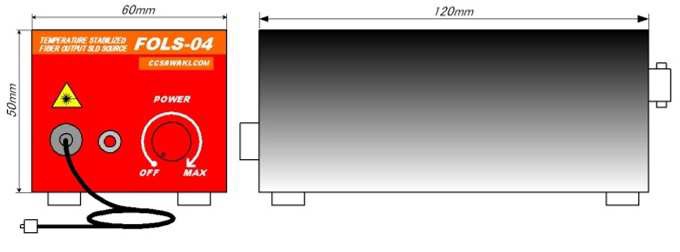

External Dimension
