Portable X-ray Fluorescence Analyzer
Flyer
Features
- Weight as light as 9kg only ! movable easy even by female staff
- AC100V only for utility designed as saving-energy（1/5 vs conventional type）
- Realized reasonable price by concentrating simple function
- Easy customization possible according to application
- With SDD installed, no liquid nitrogen or cooling water required
Small-sized, Lignt-weighted and High-sensitivity Analyzer
Now available at low price for specific application
application example
- Analysis of precious metal composition
- Control of slug alkali content in the slug
- Analysis of hazardous heavy metal, according to RoHS instruction
- Analysis of RPF(new type of solid fuel)
- Analysis of hazardous heavy metal in the soil etc････
The energy dispersive X-ray fluorescence analyzer irradiates a primary X-ray to a sample
from its X-ray tube. The fluorescent X-ray generated by the analyzer is measured with
a semi-conductive detector. Then you can conduct nondestructive qualitative and
quantitative analyses of a sample, regardless of its shape.
With use of electronic cooling system Silicon Drift Detector (SDD) for semiconductor detection
needing no liquid nitrogen, you can attain analysis of a high count rate and high resolution power
in combination with Digital Signal Processor (DSP).
In order to enhance analytical performances, the analyzer is prepared to satisfy the conditions
for optical excitation what can maximize energy resolution power and count sensitivity.

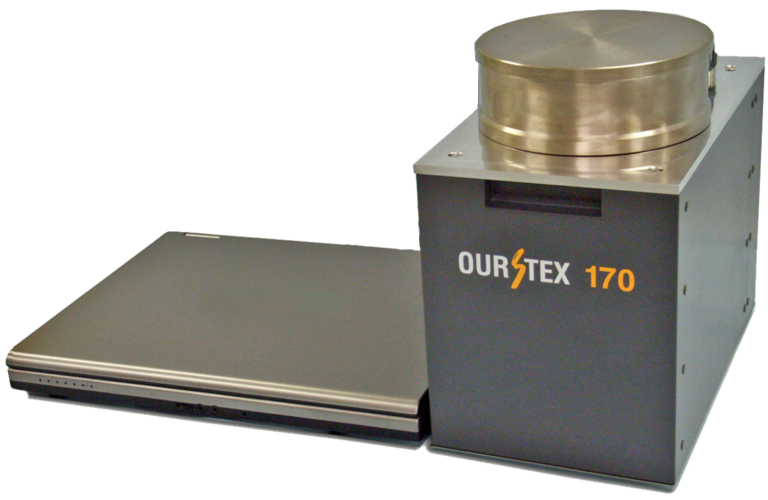

With OURSTEX 170
Maintaining Ourstex established technology of high-sensitivity and high-precision,
we have now achieved the reasonable price to purchase easy as the result of simplifing
the function and excess portion. Pursuing the type of compactness we have also
succeeded to achieve light weight produt with total weight as light as 9 kg which
is easy carried and moved by only one female staff.

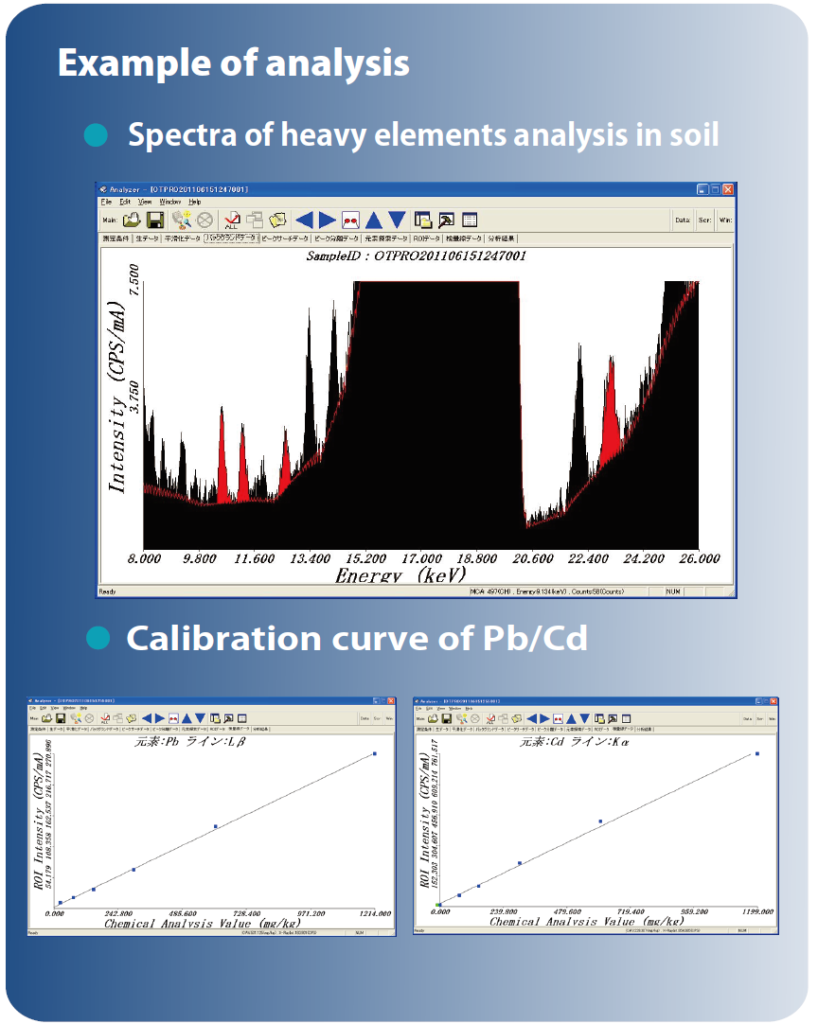

Example of analysis
Specifications
| Analytical principle | Energy Dispersive X-ray Fluorescence Analyzer |
| Analytical object | solid, power and liquid |
| Element to be analyzed | Na～U(Na～Ar) |
| Filter | Primary filter / Secondary filter (option) |
| Shape of sample chamber | 165mmΦ×60mmH |
| Environment of sample chamber | Atmospherric |
| Rated X-ray output | 50kV 0.2mA (MAX) |
| Detector | Electronic cooling Silicon Drift Detector |
| Counting circuit | Digital processing type |
| Confitions of use (Temprature) | 5～27℃ |
| Confitions of use(Humidity) | 20～75％ |
| Confintions of use(Power supply) | AC100～240V 1A(50/60Hz) |
| Confintions of use(Facility) | Grounding Class D |
| Ohter (Optional) | Vacuum pump, CMOS camera, FP Method, PC, Carrying case |
Dimensional drawing
- Before an implementation of OURSTEX 170, a notification to Labor Standards Supervision Office is required.
- For your correct and safe use, please be sure to read the operation manual in advance.
