MM fiber output nano-second pulsed LED unit

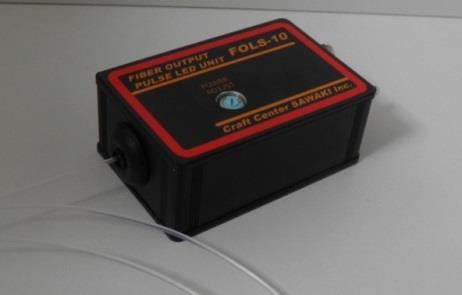

FOLS-10 is a palm top size pulsed LED source including MM output fiber, LED chip, driving circuit and power supply.
FOLS-10 generates high speed optical pulse(Tr=30ns) with external TTL trigger.
Any color of white, UV, visible and IR is selectable with fringe-free and speckle-free.
Output fiber of 600μm core or 200μm core is selectable.

Fiyer

Feature

• Easy handling with fiber output
• High speed pulse emission with Tr=30ns
• Palm top size
• Color : UV, VIS, IR
• Fringe-free and speckle-free emission
• Excellent power stability

Applications

• Exciting source for fluorescence experiment
• Fringe-free and speckle-free optical measurement
• Lock-in measurement
• Pulse response measurement of photo-detector

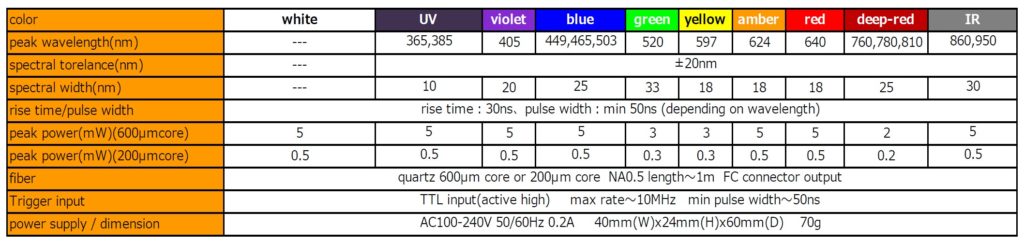

Specifications

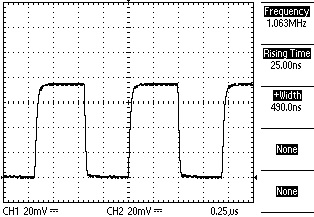

Pulse Emission(660nmLED)

time : 0.25µs/div
Tr : 25ns Pulse width : 490ns repetition : 1MHz

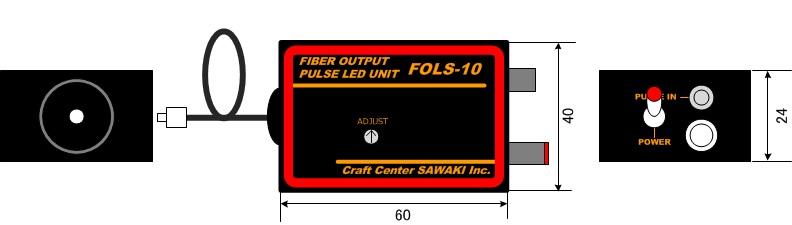

Dimension

Option

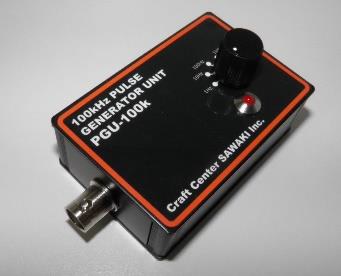

100kHz pulse generator unit：PGU-100k

• repetition : 1Hz, 10Hz, 100Hz, 1kHz, 10kHz, 100kHz
• Duty : 50% fixed
• amplitude： TTL level
• power supply ： AC adopter included
