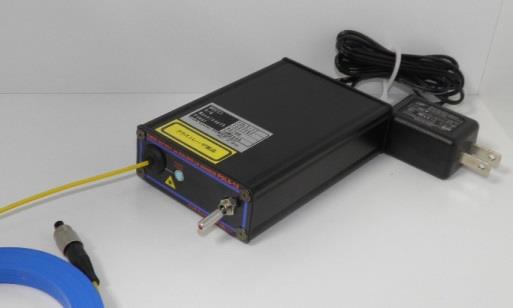

Fiber output pico-second pulsed LD source

FOLS-12 is a fiber output pulsed LD source including output fiber, LD chip, driving circuit and power supply.
FOLS-12 generates high speed optical pulse (pulse width 500ps fixed and max 50MHz repetition) with external TTL trigger.
375nm ～ 1620nm wavelength region can be selected for each application.
LD module inside is temperature stabilized for stable power and wavelength emission.

Flyer

Feature

• Easy handling with fiber output
• Pulse emission with external TTL pulse
• Optical pulse width～500ps fixed, 50MHz repetition
• Wavelength region 375nm～1620nm
• Excellent power and wavelength stability

Applications

• Exciting source for fluorescence experiment
• Lock-in measurement
• Pulse response measurement of photo-detector

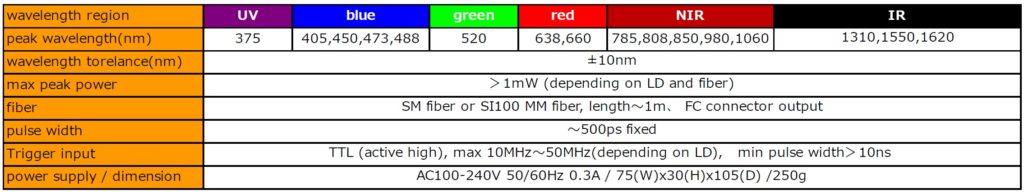

Specifications

Pulse Waveform

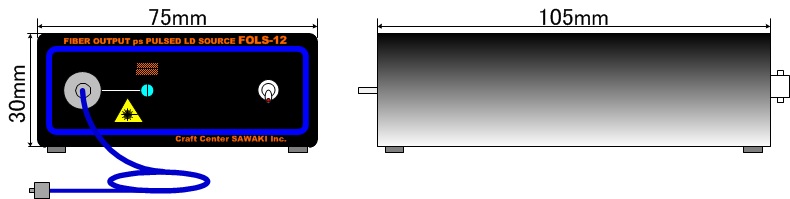

Dimension

Option

Crystal oscillator unit : COU-50M

• repetition : 1MHz, 2MHz, 5MHz, 10MHz, 20MHz, 50MHz
• Duty：50% fixed
• amplitude：TTL level
• power supply：AC adopter included
