Fiber output nano-second pulsed LD source

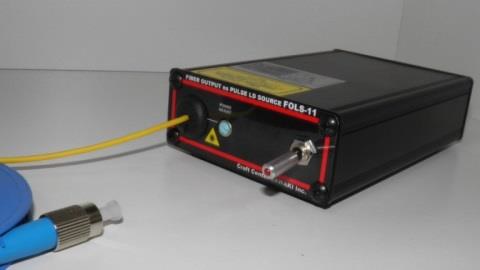

FOLS-11 is a fiber output pulsed LD source including output fiber, LD chip, driving circuit and power supply.
FOLS-11 generates high speed optical pulse (Tr～5ns and max ＞30MHz repetition) with external TTL trigger.
375nm ～ 1620nm wavelength region can be selected for each application.
LD module inside is temperature stabilized for stable power and wavelength emission.

Flyer

Feature

• Easy handling with fiber output
• Pulse emission with external TTL trigger
• High speed Tr=5ns, ＞30MHz repetition
• Wavelength region 375nm～1620nm
• Excellent power and wavelength stability

Applications

• Exciting source for fluorescence experiment
• Lock-in measurement
• Digital pattern emission
• Spectral analysis
• Pulse response evaluation of photo-detector

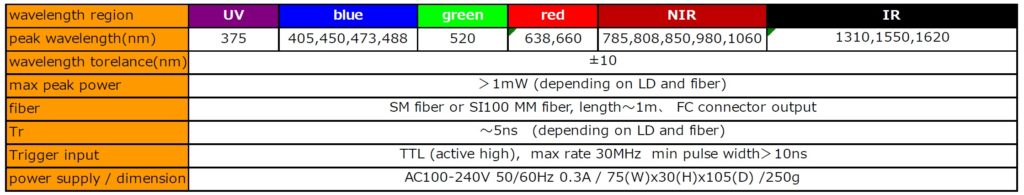

Specifications

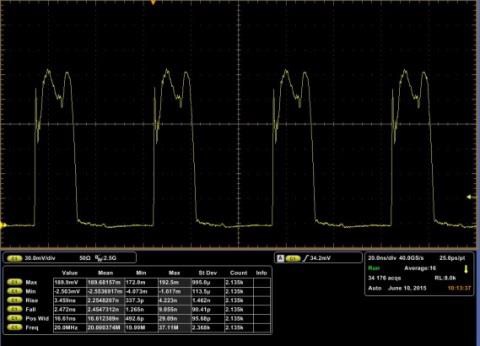

Pulse Emission

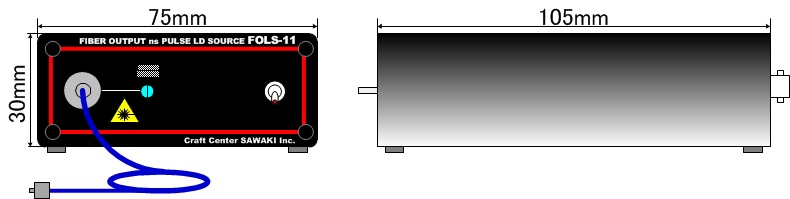

Dimension

Option

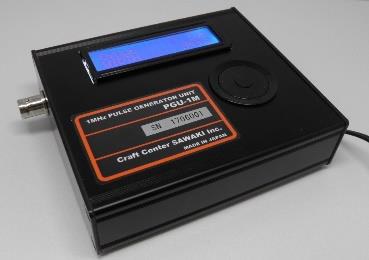

1MHz pulse generator unit : PGU-1M

• repetition continuous：DC～1MHz
• pulse width continuous : 1s～100ns
• amplitude：TTL level
• power supply : AC adopter included
