Compact Fiber Output LED Light Source

FOLS-01 is an ultra-compact LED light source with output fiber, LED chip, driving circuit and power supply.
White, ultra-violet, RGB, infra-red can be selected for each application.
LED output has neither fringe pattern nor speckle noise.
Strobe emission mode is achieved with external TTL trigger input.
Output fiber is selectable with 600um core for high output power or 200um core for small output beam.

Flyer

Property

• Fiber output for easy use
• Ultra-compact package
• White, ultra-violet, RGB and infra-red
• Fringe-free and speckle-free output beam
• High output stability with cooler fan
• Strobe emission with external TTL trigger input

Application

• Exciting source for fluorescence experiment
• Fringe-free and speckle-free optical measurement
• Microscope illumination
• Spectral analysis
• Small spot illumination
• Optical sensing

Specifications

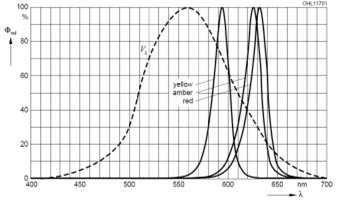

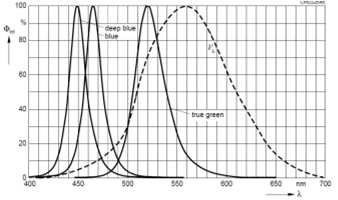

Spectrum

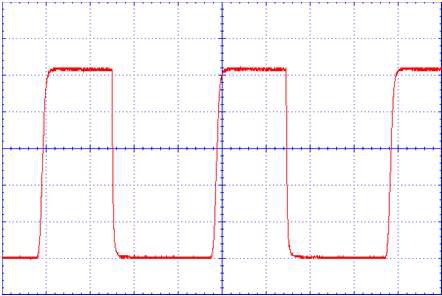

Strobe Emission (Red : repetition 500Hz)

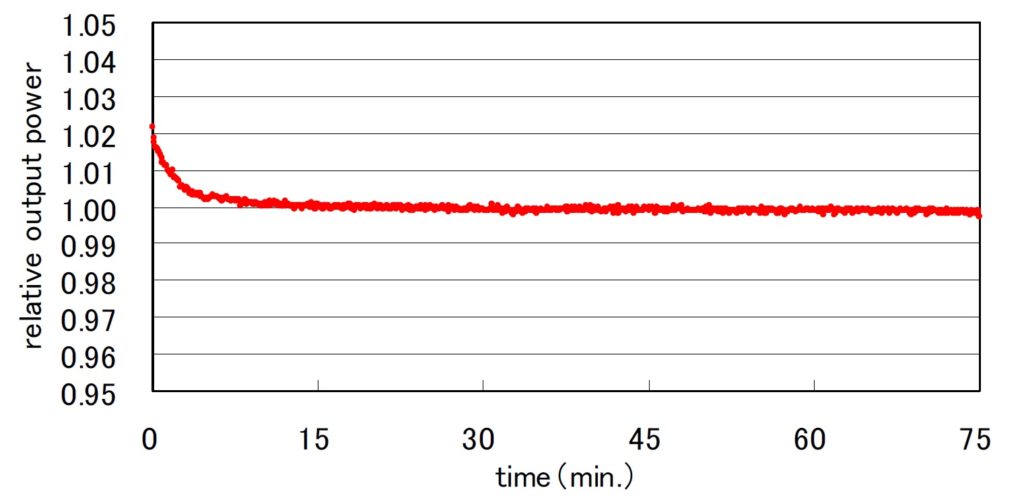

Stability

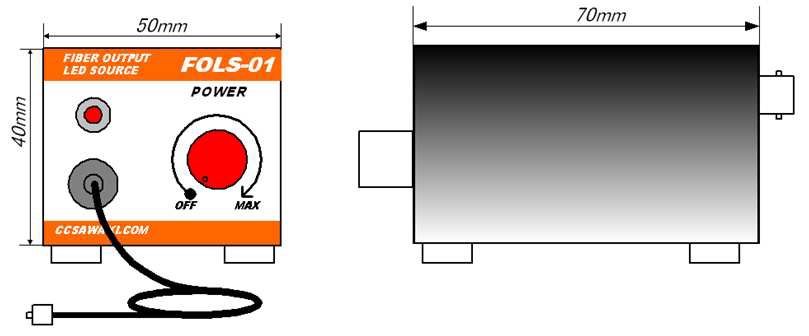

External Dimension
